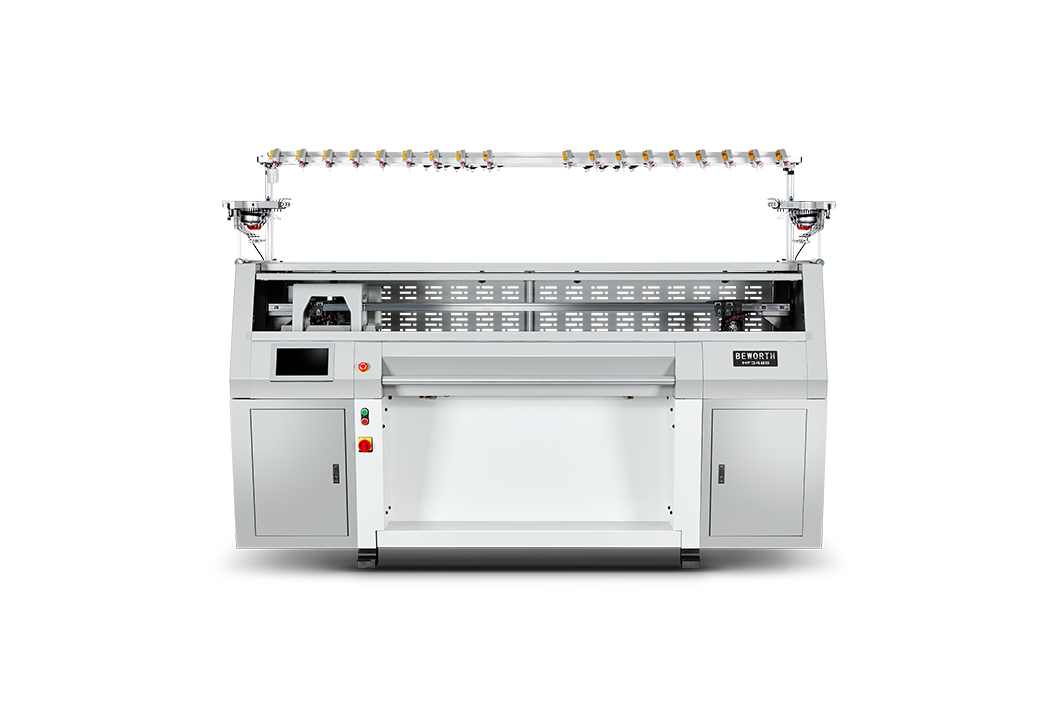

MF338S


•5.0 inches motorized encoder mini carriage, more efficient, more stable. Warning if cam at wrong position, to avoid needle hit.

•Motorized yarn feeder, auto feeding yarn without carriage leading, reduce missed course, more efficient more various designs. Take down force is more even, fabric density is more stable.

•Adjustable lifting needle bed, multi-applicable with three levels to fulfill normal knitting or filling design of shoe up production

•Touch screen is more visible and easy to operate.

•Knitting width 38 inches, total needle number 532 pcs, suitable for production of single piece or double piece boutique shoe upper.

•Crossover sinker is suitable for No waste yarn start, fléchage knitting, bobble stitch.

•Three system adopts motor control reversing,transfer to fulfill adjustable tight knit and tight

•Auto-lubricating system, regular and quantitative lubrication, better maintenance, less parts wear, extends longevity.
•Networking features is useful for large-scale production online management, mobile App supports offsite management.

•This model could fulfill filling function with extra lifting yarn feeders, to achieve partial filling, and wide range filling, it can inlay 4000D and up yarn, full and stereoscopic stitch, brings more possibility of design and innovation of shoe upper.

•Size:2.325X0.92X2.01m Weight: 930KG around Power: 2.0kw





Touch Screen

One-touch screen, easy operation, satisfied experience.

Needle Bed

Divided structure, steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longevity.

Cam

Core spare parts, imported steel, manufactured by high-speed CNC. Fine polishing to achieve surface finish as mirror to reduce the resistance with needles and improve efficiency.






Scissors And Clippers

Clippers work with scissors to increase the knitting efficiency.

Take Down Comb

Use motive release technology, work with clippers and scissors set to decrease the waste yarn, yarn clearing work and increase the productivity.

Positive Yarn Provider

Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency.
