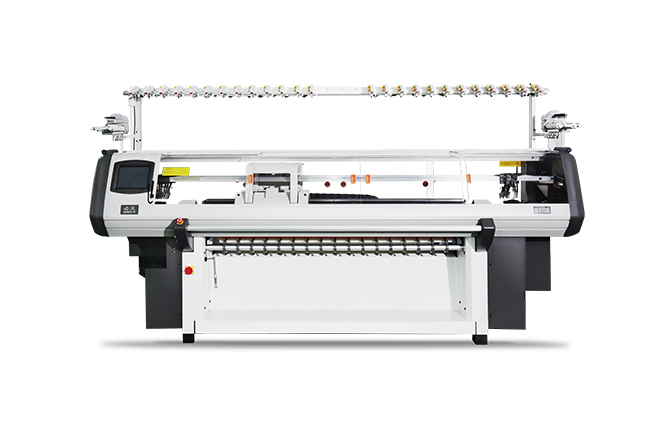

B352S is single carriage three systems with single up-position roller meet the tension requirement for partial knitting. Fulfil the perfect take down of fabric. Equipped with infrared detecting alarm system, can effectively avoid the missing alarm and needle hit. Reversing system is controlled by stepping motor, increase the carriage return speed and productivity as well as avoid the worn of the carriage rail.
With digital technology, fulfil patterns of transfer, pointel, tuck, intarsia, jacquard, full needles, apparent shape, hidden shape and other regular pattern knitting functions. Suitable for knitting variety of new shoe upper made of different kinds of polyester yarns.
One-touch screen, easy operation, satisfy experience.
Divided structure, steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longevity.
Core spare parts,made of imported steel,manufactured by high-speed CNC. Fine polishing to achieve surface finish as mirror to reduce the resistance with needles and improve efficiency.
Scissors And Clippers
Clippers work with scissors to increase the knitting efficiency.
Take Down Comb
Use motive release technology,work with clippers and scissors set to decrease the waste yarn, yarn clearing work and increase the productivity.
Positive Yarn Provider
Positive yarn provider, successfully reduce yarn resistance, increase knitting efficiency.
| Machine |
|B372S (72 inches three systems single roller)||B272S (72 inches double systems single roller)|
|Needles/Width||364 needles/52 inches|
624 needles/52 inches
728 needles/52 inches
832 needles/52 inches
|Main Function||Knit basic single or double jersey, full needles, irregular, jacquard, intarsia, cables, pointel fabric.|
|Knitting System||Single carriage double systems or three systems, with digital technology, fulfil patterns of transfer, pointel, tuck, intarsia, jacquard, double jersey plain, apparent shape, hidden shape and other regular pattern knitting functions.|
|Knitting Speed||Max knitting speed 1.6M/S. 32 speed sections controlled by servo motor.|
|Stitch Density||64 density selection range 0-650 controlled by stepping motor, electrical fine adjust technology.|
|Dynamic Stitch||Deviced by dynamic stitch technology, achieve the variety stitches in one course and variety density in one course to improve knitting efficiency and variety.|
|Rib transfer||Free transfer double ways between front and back needle at same time and no limitation by carriage movement. Transfer and knit individually.|
|Sinker||Stepping motor control the adjustable sinker to achieve the multiple shaping and widening function.|
|Selection Needles||8 sections selection needles|
|Single Packing||Motor drive racking, achieve 1/2 or 1/4 needle racking at any position. max 2 inches one side suitable for 9G, 12G,14G and 16G machine.|
|Turn Back Joint(Optional)||Turn back joint controlled by stepping motor increase the carriage return speed and productivity as well as avoid the worn of the carriage rail.|
|Roller Device||Up-position roller can fuifil the perfect take down of fabric and the tension requirement for partial knitting.|
|Yarn Roller||Positive yarn roller precisely control the tension of the yarn to guarantee the fabric quality.|
|Yarn Carrier||2*8 yarn carriers deviced on 4 double sides lead rail.|
|Safety||Full machine cover to reduce the noise ad dust. Cover sensor,urgent button,power off device and indicator to guarantee the safety.|
Machine auto stop when yarn break, yarn joint stuck, fabric roll inside, needle hit, overload, program error and program end happens.
Detect the floating needle to avoid the needle hit. This deviced with smart program and infrared sensor only detect the knitting area to avoid the miss alarming.
LCD monitor, touch screen, graphical interface, USB and net input, 1GB RAM for big file storage.
Monitor: Working data, stitch data optical and adjustable during production for convenient operation.
Program system and machine computer system easy to update and support CNT/HCD/OOO pattern file.
Multiple system language operation includes Chinese, English and other languages.
|File Input||USB and network|
|Power Off Memory||Deviced advanced CMOS technology, when power off happen the knitting data and file is saved for restart knitting.|
|Net Connection||High speed (ETHERNET), maximum connect 254 machines for file input to fulfil monitor and data sharing.|
|Weight||(Double Systems) Net Weight: 1270kg; (Three Systems) Net Weight: 1300kg|
