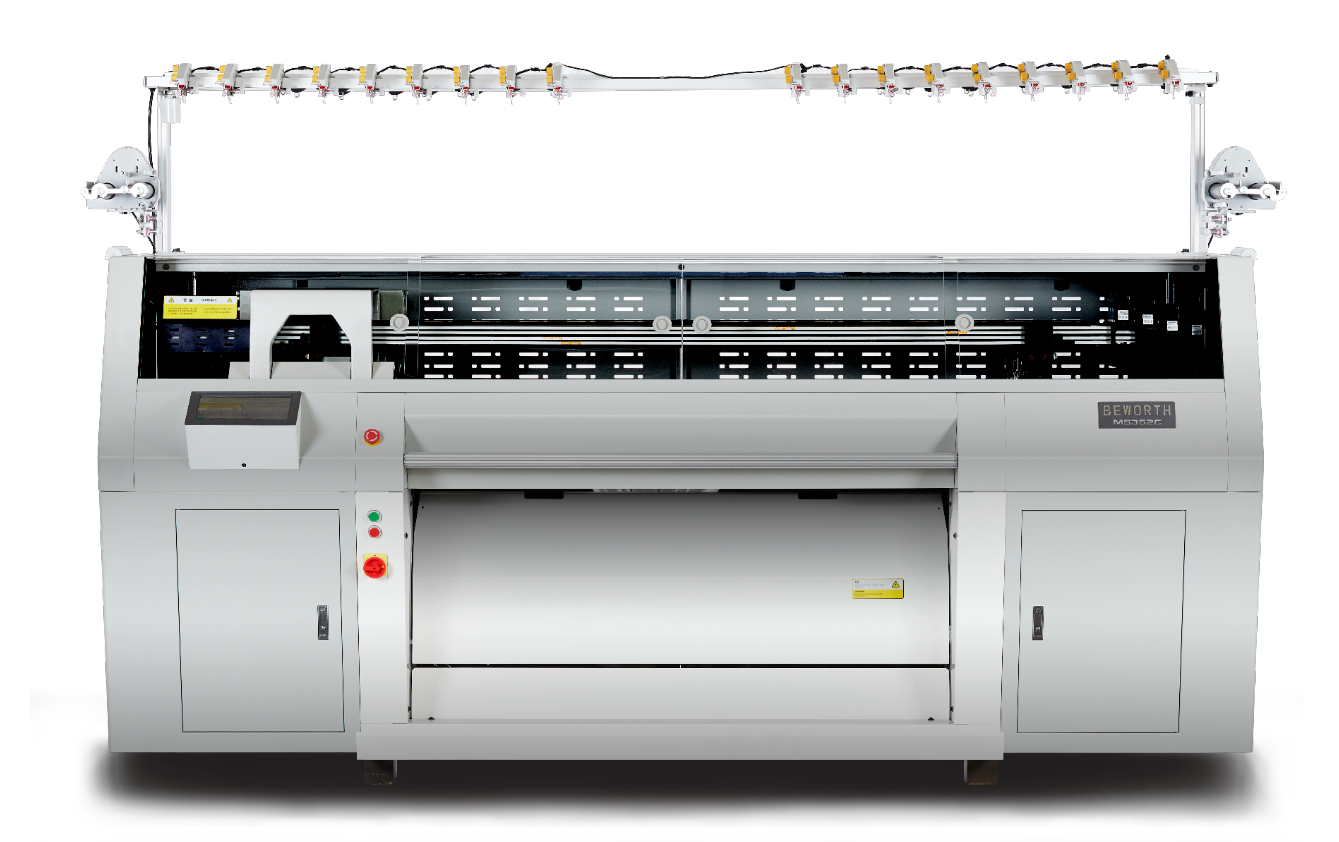

MS352C is Motorized mini carriage sweater machine with motorized yarn feeders. Single carriage, 3 systems, 52 inches needlebed width with take-down comb.
• 5.0 inches motorized encoder mini carriage, more efficient, more stable. Warning if cam at wrong position, to avoid needle hit.
• Motorized yarn feeder: the feeders aredriven by motor, achieves feeder kick out automatically, yarns come in and outautomatically,auto feeding yarn without carriage leading, reduce missed course solves that carriage carries feeder out of order/carry andno-release, accurately locate position.Take down force is more even, fabric density is more stable.
• Touch screen is more visible and easy to operate.
• Double-side narrowing, high speed and high efficiency.
• Dynamic density, adjustable density in a single row, more various patterns.
• Force loop-off technology avoids stitch missing problem.
• Zero waiting of racking, needle transfer and knit synchronous, more efficient.
• Achieve pointel, tuck, multi-colour INTARSIA, full needle, floating jacquard, double jacquard, apparent shaping, hidden shaping, PLATING, WEFT INSERTION and other different kinds of irregular patterns, like single jacquard with plating. Multi-colour Intarsia increase efficiency as 70%.
• Suitable for wool, cashmere, cotton, chemical fiber, silk, as well as different kinds of blended yarn.
• Automatic oiling system of needle bed, reduce wear and extend machine life.
• Networking function is useful for large-scale production online management, mobile App supports offsite management.
Weight: 1080KG around
One-touch screen, easy operation, satisfied experience.
Divided structure, steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longevity.
Core spare parts, imported steel, manufactured by high-speed CNC. Fine polishing to achieve surface finish as mirror to reduce the resistance with needles and improve efficiency.
Scissors And Clippers
Clippers work with scissors to increase the knitting efficiency.
Take Down Comb
Use motive release technology, work with clippers and scissors set to decrease the waste yarn, yarn clearing work and increase the productivity.
Positive Yarn Provider
Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency.
MS352C (52 inches single carriage three systems single roller with comb)
260 needles/52 inches
364 needles/52 inches
468 needles/52 inches
624 needles/52 inches
624 needles/52 inches
728 needles/52 inches
Jacquard machine can fulfil basic pattern (half milano, full needle, single face and so on) irregular multi-colors jacquard, intarsia, pointel and so on, suitable for silk, chemical fiber, wool, acrylic fiber, blending yarn, cotton yarn to knit the sweater, collar, placket, hem, cuff, scarf, pocket, pants and other knitting fabric.
Single carriage double systems(with option of three systems). with digital technology, fulfil patterns of transfer, pointel, tuck, intarsia, jacquard,double jersery plain, apparent shape, hidden shape and other regular pattern knitting functions.
Max knitting speed 1.7m/s. 32 speed sections controlled by servo motor.
64 density selection range 0-650 controlled by stepping motor, electrical fine adjust technology.
Deviced by dynamic stitch technology,achieve the variety stitches in one course and variety density in one course to improve knitting efficiency and variety.
Free transfer double ways between front and back needle at same time and no limitation by carriage movement. Transfer and knit individually.
Stepping motor control the adjustable sinker to achieve the multiple shaping and widening function. Shoe upper machine uses cross sinker, it can fulfil multi-row partial knitting, it has active effect for complex knitting pattern stitch.
Single Or Double Racking
Motor drive racking, achieve ½ or ¼ needle racking at any position. double racking max 2.5 inches one side and double sides max 5 inches, deviced on 5G, 7G, 5/7G, 7.2G machine. single racking max 2 inches, deviced on 9G, 12G, 14G and 16G machine.
HS model has double sides racking, single side max 1.5 inches, double sides 3 inches, suitable for 5G, 7G, 5/7G, 9G machine. single racking one side max 1.5 inches, suitable for 12G, 14G, 16G, 18G.
High Speed Return
Reversing carriage controlled by stepping motor, increase the carriage return speed and productivity as well as avoid the worn of the carriage rail.
Comb model deviced up-position roller and comb, non-comb machine deviced up-position roller.
24 sections of automatic control with subsection adjustment. fulfil the perfect take down of fabric and the tension requirement for partial knitting.
Positive yarn roller precisely control the tension of the yarn to guarantee the fabric quality.
2*8 yarn carriers deviced on 4 double sides rail.
Full machine cover to reduce the noise and dust. Cover sensor, urgent button, power off device and indicator to guarantee the safety.
Machine auto stop when yarn break, yarn joint stuck, fabric roll inside, needle hit, overload, program error and program end happens.
Infrared sensor only detects the knitting area to avoid the miss alarming.
LCD monitor,touch screen,graphical interface, USB and net input, 1GB RAM for big file storage.
Monitor:Working data, stitch data optical and adjustable during production for convenient operation.
Program system and machine computer system easy to update and support CNT/HCD/OOO pattern file.
Multiple system language operation includes Chinese, English and other languages.
USB and network
Power Off Memory
Deviced advanced CMOS technology, when power off happen the knitting data and file is saved for restart knitting.
High speed ethernet，maximum connect 254 machines (HQ system) or unlimited machine number by raynen system.
Net Weight: 980kg
Voltage: AC 220V/380V Frequency: 50HZ/60HZ Power: 1.5KW
